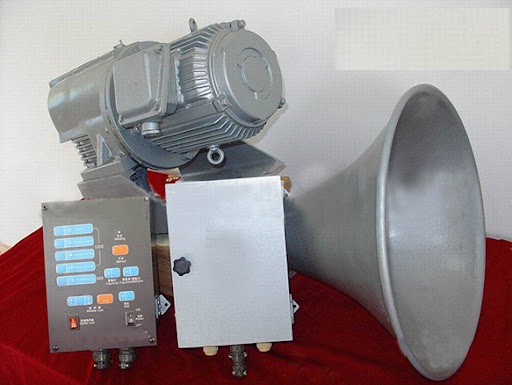

HSD161 Marine Piston Electric Horn

(1) Surrounded temperature:25℃～55℃

(2) Relative humidity: 92%～98%

(3)When vibration frequency is 2～13.2HZ, displacement amplitude is±1mm.when vibration frequency is +13.2～80HZ, acceleration amplitude is±7%.

(4) The voltage of the control is within +6%～-10% of the rated voltage. It can work safely when the frequency change is within±5% of the rated frequency.

(5) Power loss of the control:15 W

(6)Output contactor capacity of the control:5A/250V (ultimate capacity:10A/AC250V)

(7) Outer size of the control: length x width x height = 216×165×100 mm

(8) Weight of the control:3 Kg
