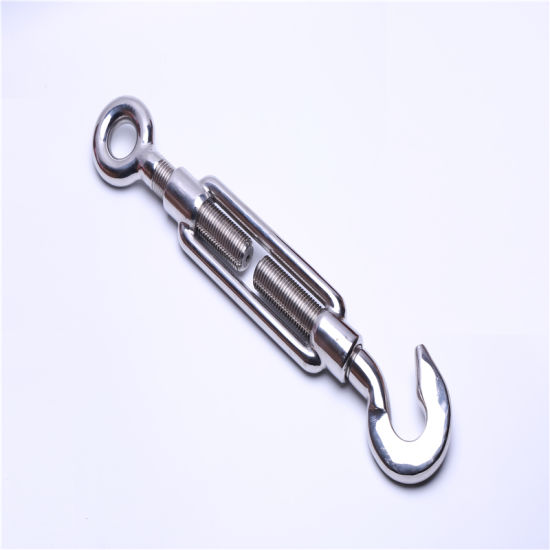

Turnbuckle DIN 1480(SS304 OR SS316)

Turnbuckle DIN 1480(SS304 OR SS316):

SIZE	LA	L2	m	b	da	di	i	W.L.L
mm	mm	mm	mm	mm	mm	mm	mm	T
M6	110	60	10	53	10	20	4.5	0.2
M8	110	60	14	55	12	26	6.5	0.4
M10	125	65	20	60	14	30.5	8	0.65
M12	125	75	21	70	18	37.5	10.5	0.9
M16	170	100	27	90	22	48	13	1.8
M20	200	115	34	100	25	51	20	2.75
M24	255	140	39	130	28	66	27	3.99
M30	255	145	45	130	35	83	31	6.25
M32	295	160	55	150	36.5	88	33	6.5
M36	295	160	55	150	44	104	40	9
M38	330	185	63	170	42	104	39	9.5

The description/sizes may be different with goods, please check with us when order.
