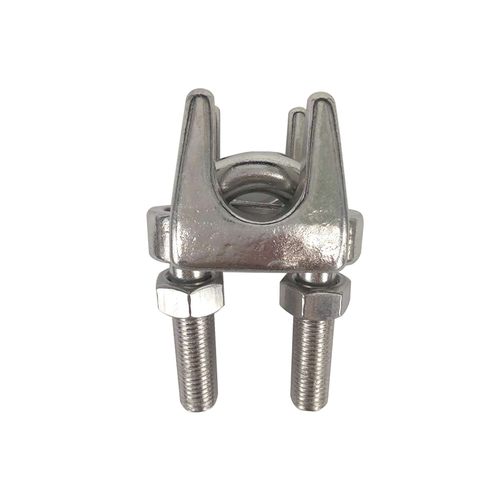

JIS Type Wire Rope Clips

JIS Type Wire Rope Clips:

SIZE mm	B mm	C mm	E mm	G mm	H mm	L mm	S mm
3	3.5	15	12	7	3	22
4	3.5	17	13	8	3.5	24
5	4	20	16	10	3.5	26	16
6	5	25	20	12	4	30	18
8	6	29	24	14	5	35	20
10	6	36	31	18	6.5	40	20
12	7	45	35	22	8	50	28
13	8	51	39	26	10	60	35
14	9	53	45	28	10	65	40
16	10	60	48	32	11	75	45
18	11	62	53	34	11	80	50
20-22	12	78	62	44	15	100	60
24-25	13	86	68	48	16	110	65
26-28	14	94	75	54	18	120	70
30-32	15	98	79	58	18	130	75
33-38	16	120	93	70	22	150	85
40-45	19	136	100	80	24	175	95
47-50	21	150	115	89	26	195	100
56-60	25	170	128	101	29	240	115
63-70	27	190	142	115	31	270	130
73-80	29	212	156	127	34	300	150

The description/sizes may be different with goods, please check with us when order.
