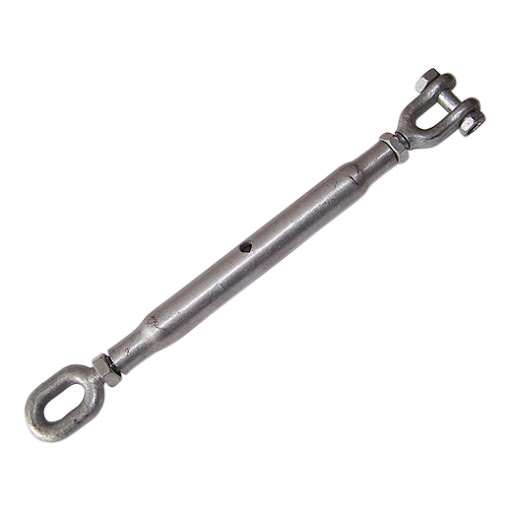

Rigging Screw With Eye And Jaw
Size Table
| SWL | A | B | C | D1 | D2 | D3 | D4 | E1 | E2 | E3 | Weight kgs |
| .Tons | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg |
| 0.1 | 6 | 102 | 12 | 3 | 5 | 15 | 7 | 6 | 15 | 8 | 0.11 |
| 0.15 | 88 | 110 | 15 | 4 | 6 | 16 | 9 | 7 | 19 | 10 | 0.23 |
| 0.375 | 10 | 152 | 21 | 5 | 8 | 21 | 11 | 8 | 25 | 11 | 0.28 |
| 0.5 | 12 | 175 | 27 | 6 | 10 | 25 | 13 | 11 | 30 | 14 | 0.8 |
| 0.75 | 16 | 229 | 27 | 10 | 12 | 40 | 18 | 14 | 41 | 16 | 1.4 |
| 1.125 | 20 | 229 | 33 | 12 | 16 | 45 | 20 | 16 | 51 | 22 | 2 |
| 1.6 | 22 | 305 | 33 | 15 | 18 | 48 | 24 | 16 | 51 | 22 | 3.5 |
| 2 | 24 | 325 | 42 | 16 | 22 | 65 | 28 | 19 | 57 | 25 | 4 |
| 2.75 | 28 | 356 | 48 | 18 | 22 | 59 | 30 | 19 | 57 | 28 | 4.5 |
| 3.75 | 33 | 381 | 48 | 20 | 27 | 62 | 34 | 22 | 65 | 35 | 6.5 |
| 4.25 | 35 | 381 | 60 | 22 | 28 | 68 | 38 | 22 | 65 | 36 | 8 |
| 5 | 39 | 406 | 60 | 24 | 33 | 74 | 42 | 25 | 74 | 38 | 11 |
The description/sizes may be different with goods, please check with us when order.
Main Specification
Turnbuckle usually Forged, Free forged and Casting.
The surface of turnbuckle original color, galvanised,hot galvanized
Material is 45# Steel, Q235
