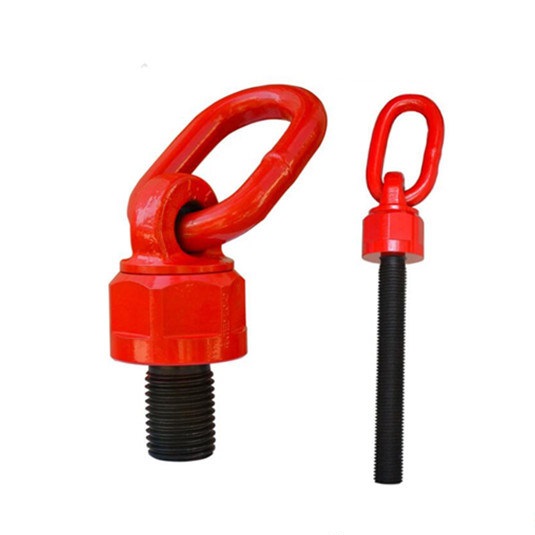

Swivel Hoist Ring
Swivel Hoist Ring:
| Metric Model | Load WLL(T) |
Unit（mm） | Weight（kg） | ||||||
| A | B | C | D | E | d | F | |||
| M8X1.25-6g | 0.4 | 27 | 39 | 85 | 38 | 33.3 | 7.9 | 12 | 0.27 |
| M10X1.5-6g | 0.5 | 27 | 39 | 85 | 38 | 33.3 | 7.9 | 19 | 0.27 |
| M12X1.75-6g | 1.05 | 35 | 58 | 135 | 65 | 54.3 | 12.7 | 19.1 | 1.2 |
| M14X2.0-6g | 1.05 | 35 | 58 | 135 | 65 | 54.3 | 12.7 | 31.8 | 1.2 |
| M16X2.0-6g | 1.9 | 35 | 58 | 135 | 65 | 54.3 | 12.7 | 31.8 | 1.2 |
| M20X2.5-6g | 2.15 | 40 | 67 | 160 | 75.5 | 64.3 | 19.1 | 38.1 | 2.21 |
| M22X2.5-6g | 2.25 | 40 | 67 | 160 | 75.5 | 64.3 | 19.1 | 38.1 | 2.21 |
| M24X3.0-6g | 4.2 | 40 | 67 | 160 | 75.5 | 64.3 | 19.1 | 38.1 | 2.21 |
| M30X3.5-6g | 5 | 50.8 | 95 | 205 | 90 | 74 | 22.2 | 50 | 3.86 |
| M33X3.5-6g | 7 | 50.8 | 95 | 205 | 90 | 74 | 22.2 | 50 | 3.86 |
| M36X4.0-6g | 8 | 50.8 | 95 | 205 | 90 | 74 | 22.2 | 54 | 3.86 |
| M39X4.0-6g | 8 | 50.8 | 95 | 205 | 90 | 74 | 22.2 | 58 | 3.86 |
| M42X4.5-6g | 10 | 63 | 108 | 230 | 100 | 85 | 25 | 63 | 6.08 |
| M45X4.5-6g | 10 | 63 | 108 | 230 | 100 | 85 | 25 | 68 | 6.08 |
| M48X5.0-6g | 10 | 63 | 108 | 230 | 100 | 85 | 25 | 68 | 6.08 |
| M56X5.5-6g | 15 | 70 | 120 | 278 | 132 | 95 | 32 | 84 | 10.8 |
| M60X5.5-6g | 15 | 70 | 120 | 278 | 132 | 95 | 32 | 90 | 10.8 |
| M64X6.0-6g | 15 | 70 | 120 | 278 | 132 | 95 | 32 | 95 | 10.8 |
| M72 | 25 | 80 | 125 | 331 | 166 | 130 | 40 | 108 | 27 |
| M90 | 35 | 80 | 125 | 331 | 166 | 130 | 40 | 135 | 31 |
| English Model | Load | Unit（mm） | Weight（kg） | ||||||
| WLL(LBS) | A | B | C | D | E | d | F | ||
| 5/16″-18UNC-2A | 800 | 27 | 39 | 85 | 38 | 33.3 | 7.9 | 12.7 | 0.27 |
| 3/8″-16UNC-2A | 1000 | 27 | 39 | 85 | 38 | 33.3 | 7.9 | 12.7 | 0.27 |
| 7/16″-14UNC-2A | 2000 | 35 | 58 | 135 | 65 | 54.3 | 12.7 | 19.1 | 1.2 |
| 1/2″-13UNC-2A | 2500 | 35 | 58 | 135 | 65 | 54.3 | 12.7 | 19.1 | 1.2 |
| 5/8″-11UNC-2A | 4000 | 35 | 58 | 135 | 65 | 54.3 | 12.7 | 25.4 | 1.2 |
| 3/4″-10UNC-2A | 5000 | 40 | 67 | 160 | 75.5 | 64.3 | 19.1 | 31.8 | 2.21 |
| 1″-8UNC-2A | 10000 | 40 | 67 | 160 | 75.5 | 64.3 | 19.1 | 38.1 | 2.21 |
| 1-1/4″-7UNC-2A | 11000 | 50.8 | 95 | 205 | 90 | 74 | 22.2 | 50.8 | 3.86 |
| 1-1/2″-6UNC-2A | 17600 | 50.8 | 95 | 205 | 90 | 74 | 22.2 | 54 | 3.86 |
| 2″-4.5UNC-2A | 22000 | 65 | 108 | 230 | 100 | 85 | 25 | 76.2 | 6.08 |
| 2-1/2″-4UNC-2A | 33000 | 70 | 120 | 278 | 132 | 95 | 32 | 101.6 | 10.8 |
The description/sizes may be different with goods, please check with us when order.
